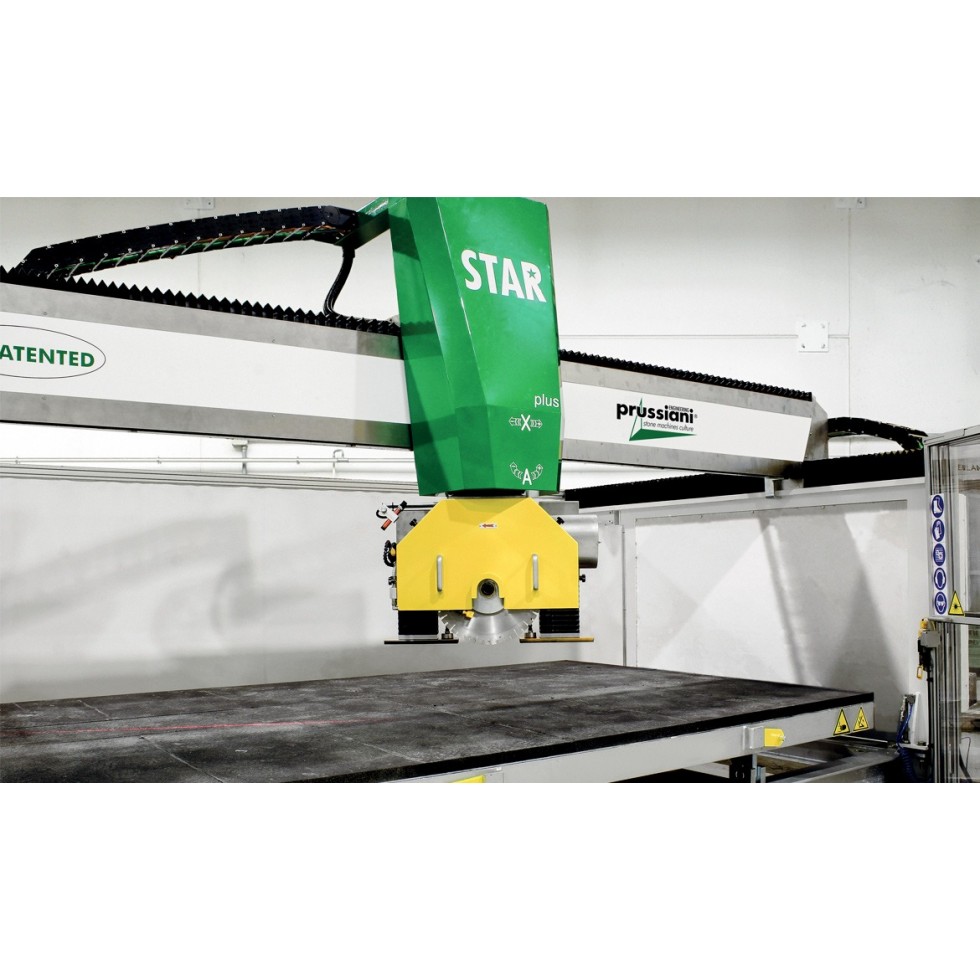

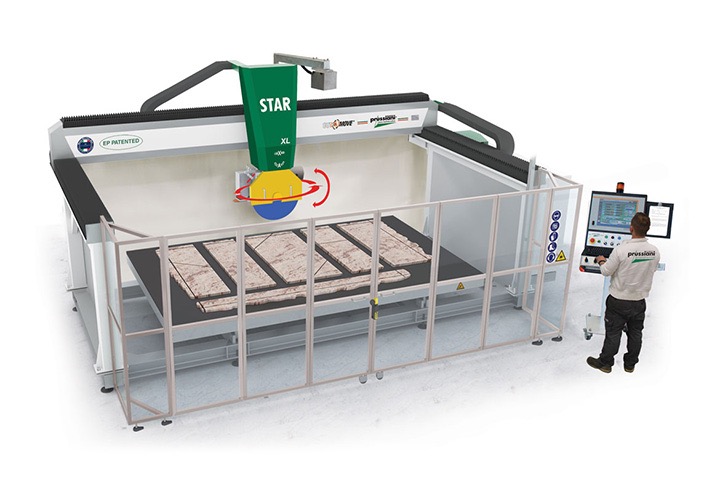

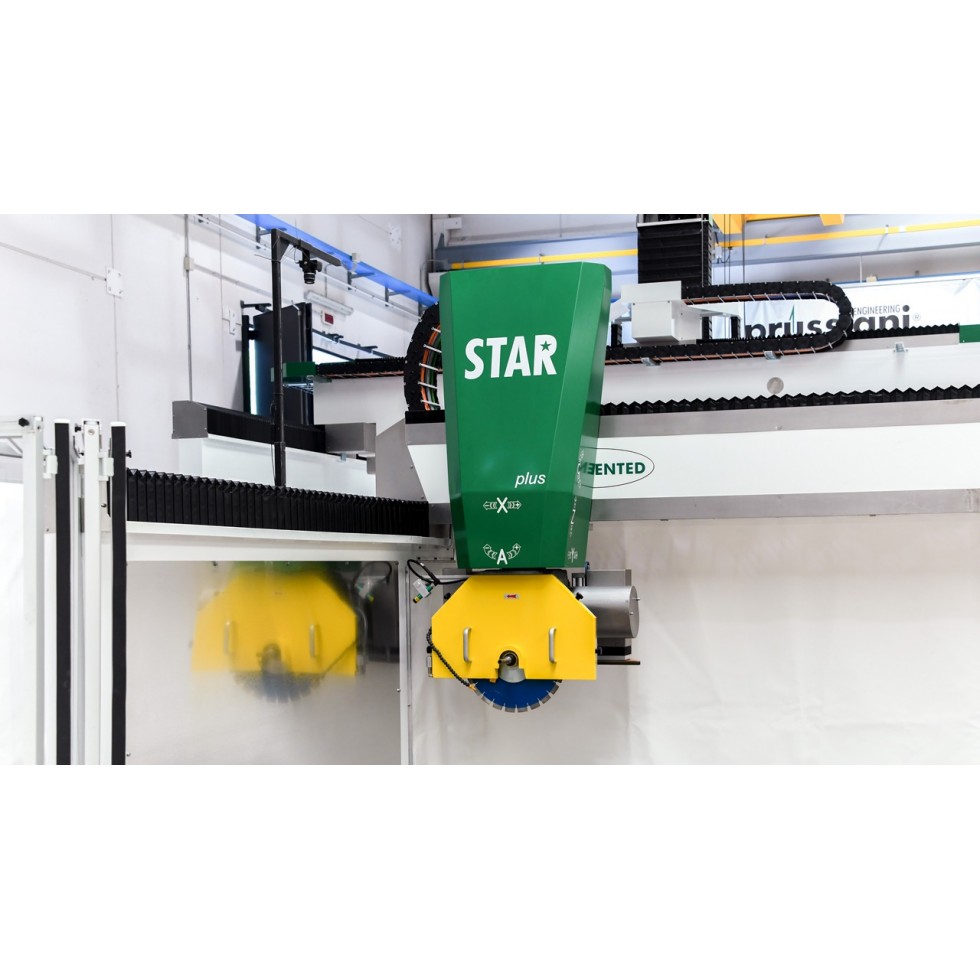

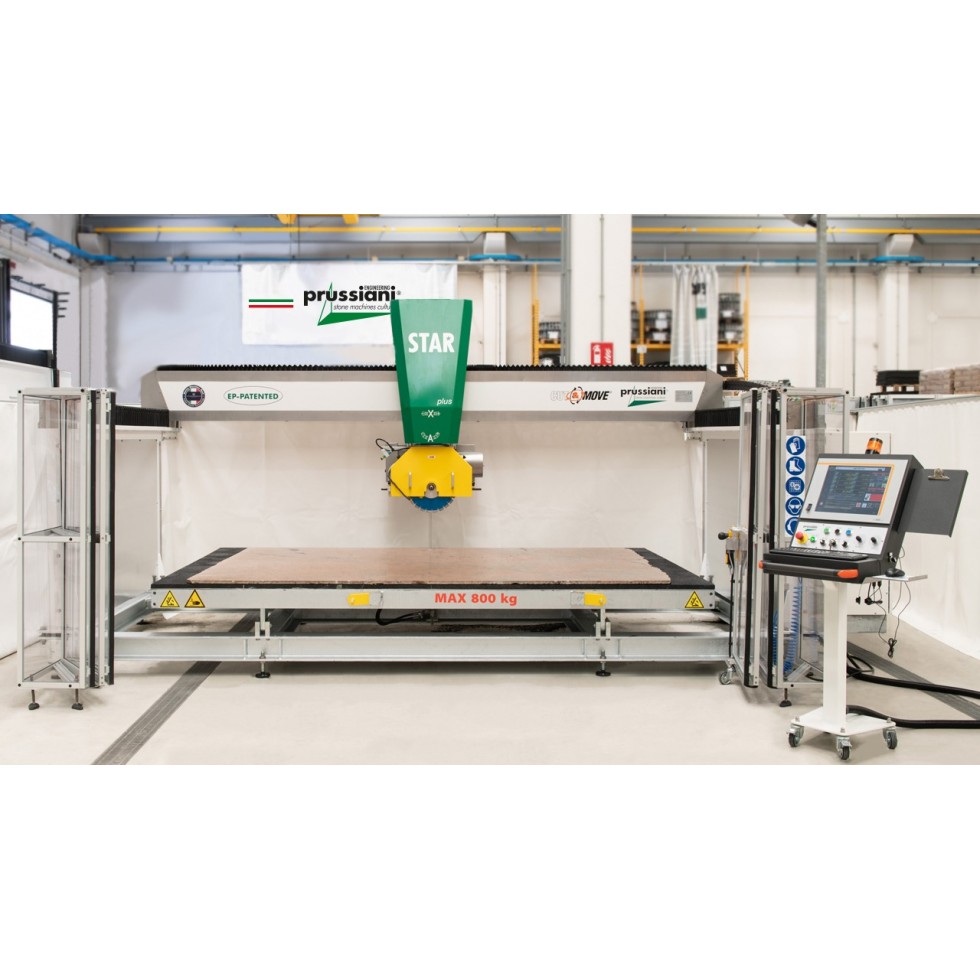

SAW - STAR XL
Price: Login to view
Prussiani Engineering bridge saws are designed and built for the processing of marble, granite, artificial quartz, ceramic and natural stones.

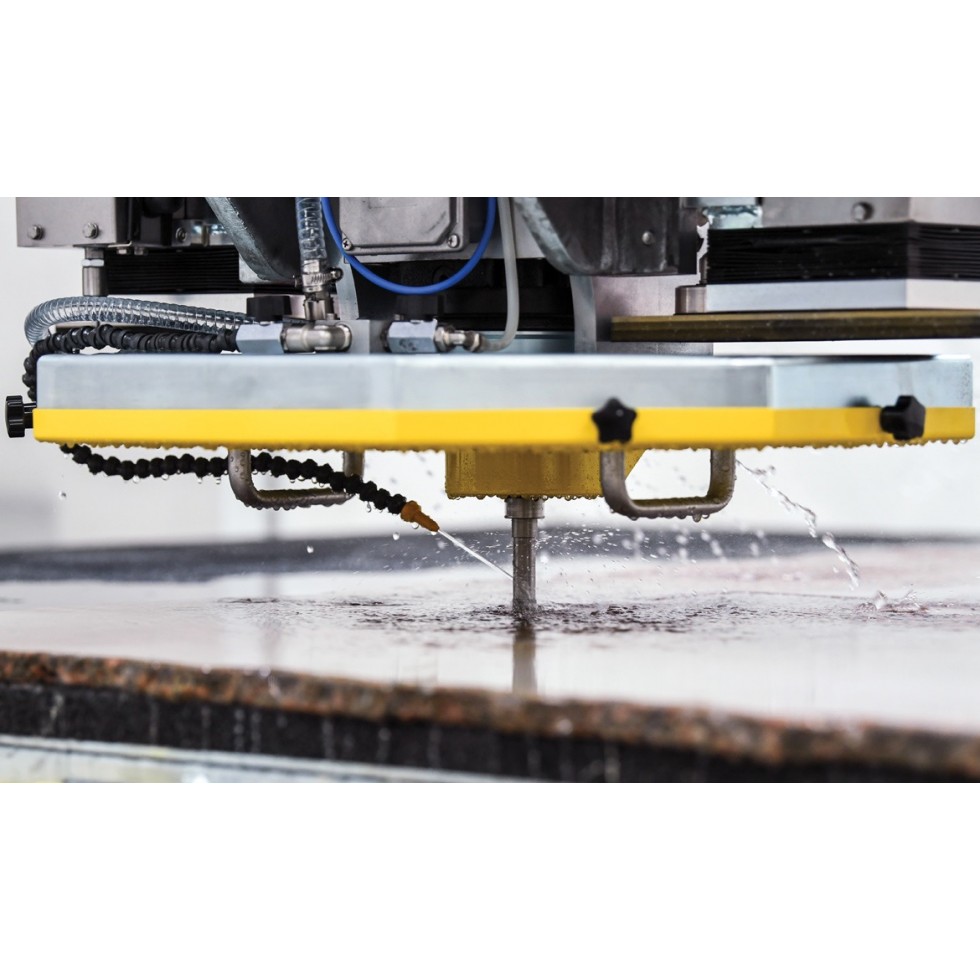

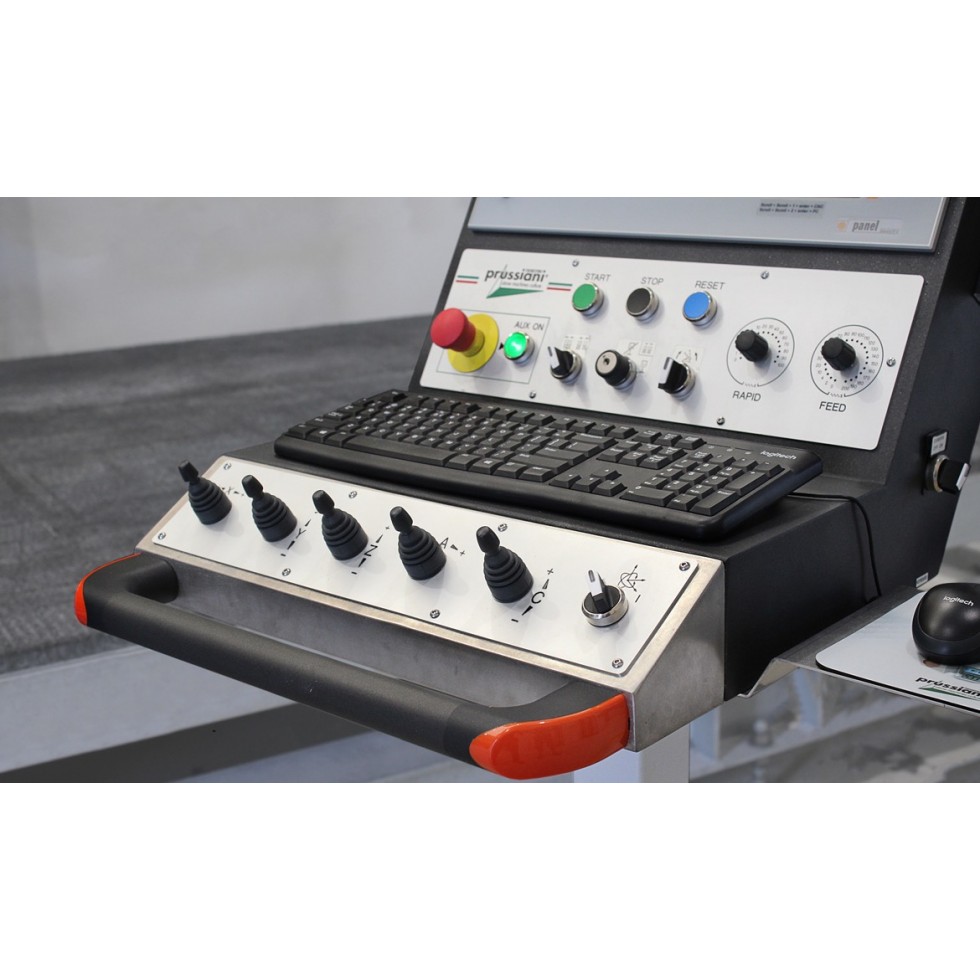

Powered by a numerical control interfaced with CAD/CAM systems, 5 interpolated axis bridge saws (STAR, CHAMPION and TANGO) are ideal for complex works like linear, curved and inclined cutting, drilling, profiling, engravings and bas-reliefs.

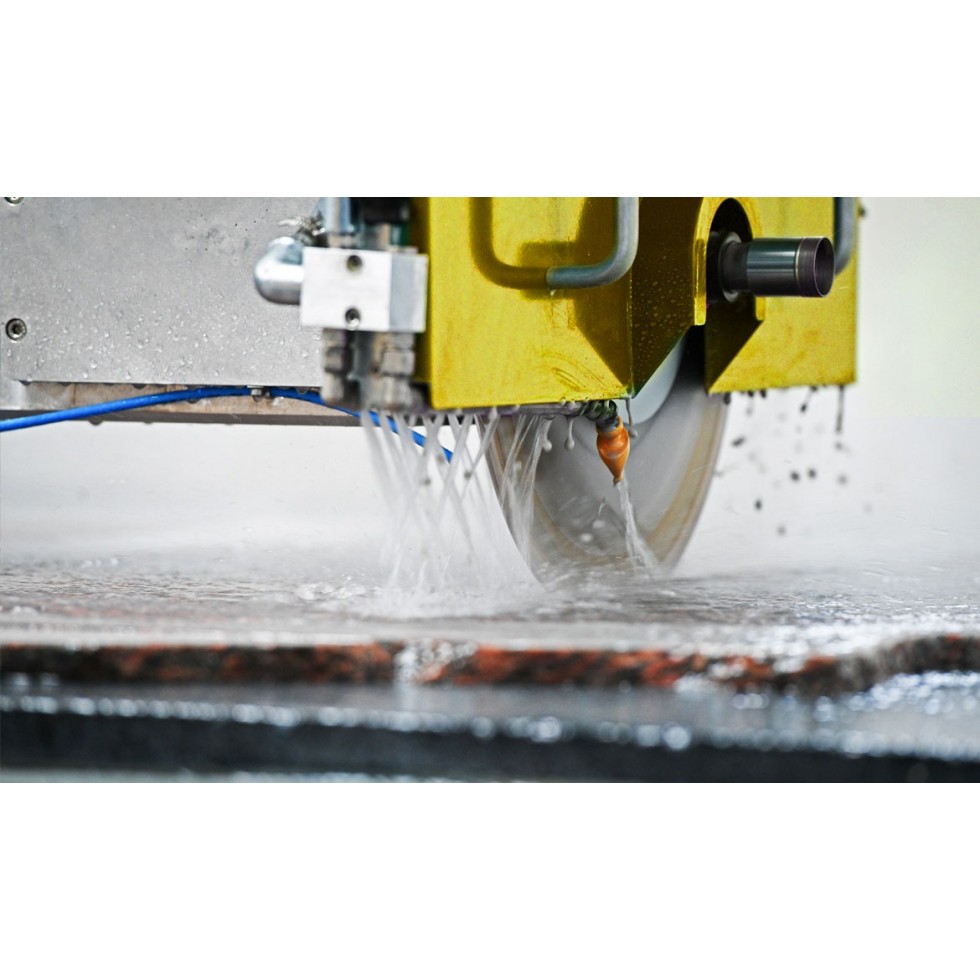

Whether for the production of unique pieces or for serial production STAR, CHAMPION and TANGO bridge saws are mainly used for slab cutting.
TECHNICAL DATA
| X axis stroke | mm (in) | 3.600 (141 ¾) |
| Y axis stroke – GANTRY | mm (in) | 2.600 (102 ⅓) |
| Z axis stroke | mm (in) | 350 (13 ¾) |
| A axis rotation | degrees | -185°+185° (370°) |
| C axis inclination | degrees | 0°÷ 90° |
| X axis rapid speed | m/min (fpm) | 45 (147,6) |
| Y axis rapid speed | m/min (fpm) | 45 (147,6) |
| Z axis rapid speed | m/min (fpm) | 10 (32,8) |
| Main disk-holder electrospindle power | HP S6 (kW) | 18 (13,2) |
| Main disk-holder electrospindle torque | Nm | 72 |
| Disk-holder electrospindle rotation speed | rpm | 0 ÷ 6.000 |
| Electrospindle tool holder | – | 1/2″ gas ISO 40 (optional) |

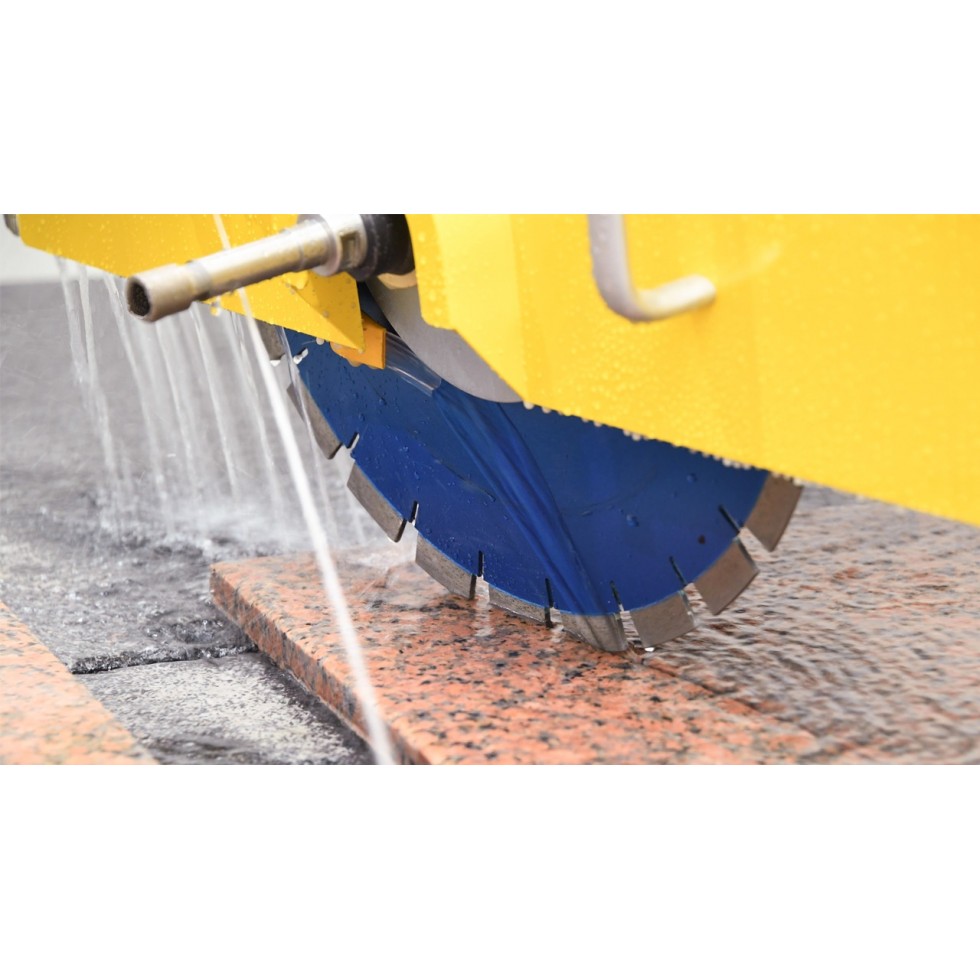

| Max disk diameter | mm (in) | 625 (24 ⅝) |
| Axes motors for axis X-Y-Z-A-C with absolute encoder | – | BRUSHLESS |
MACHINE SIZES
| Max total absorbed power | kW | 18 |
| Approximate total weight | kg (lb) | 5.000 (11.023) |
| Lenght | mm (in) | 5.750 (226 ⅓) |
| Width | mm (in) | 4.000 (157 ½) |
| Height | mm (in) | 2.700 (106 ¼) |
| Height with camera | mm (in) | 2.800 (110 ¼) |

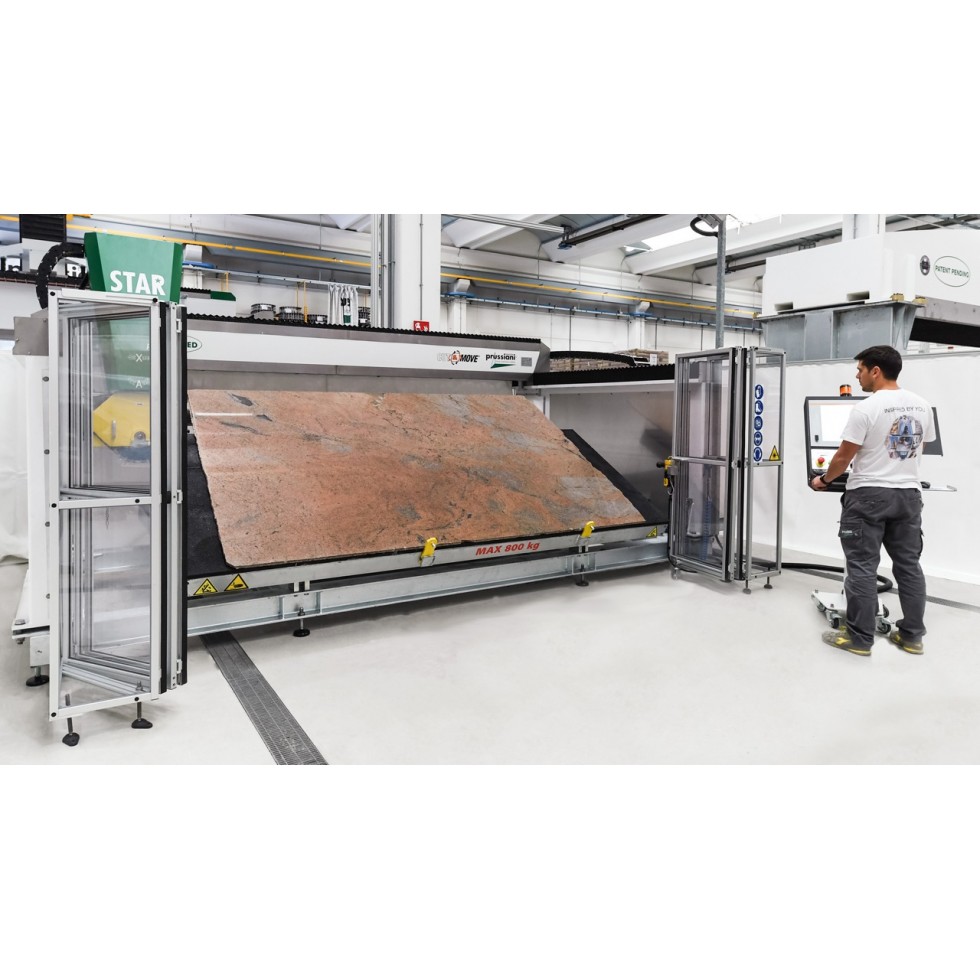

| Capacity suction cups | kg (lb) | 420 (926) |
| Minimum width for lifting Optimal* |
mm (in) mm (in) |
120 (4 ¾) 50 (2) |
- automatic centralized greased lubrification. In case of anomalies the machines stops;
- watertight IP 55 electric cabinet with safety thermostat;
- sound power level: 80 ÷ 90 dB(A).
