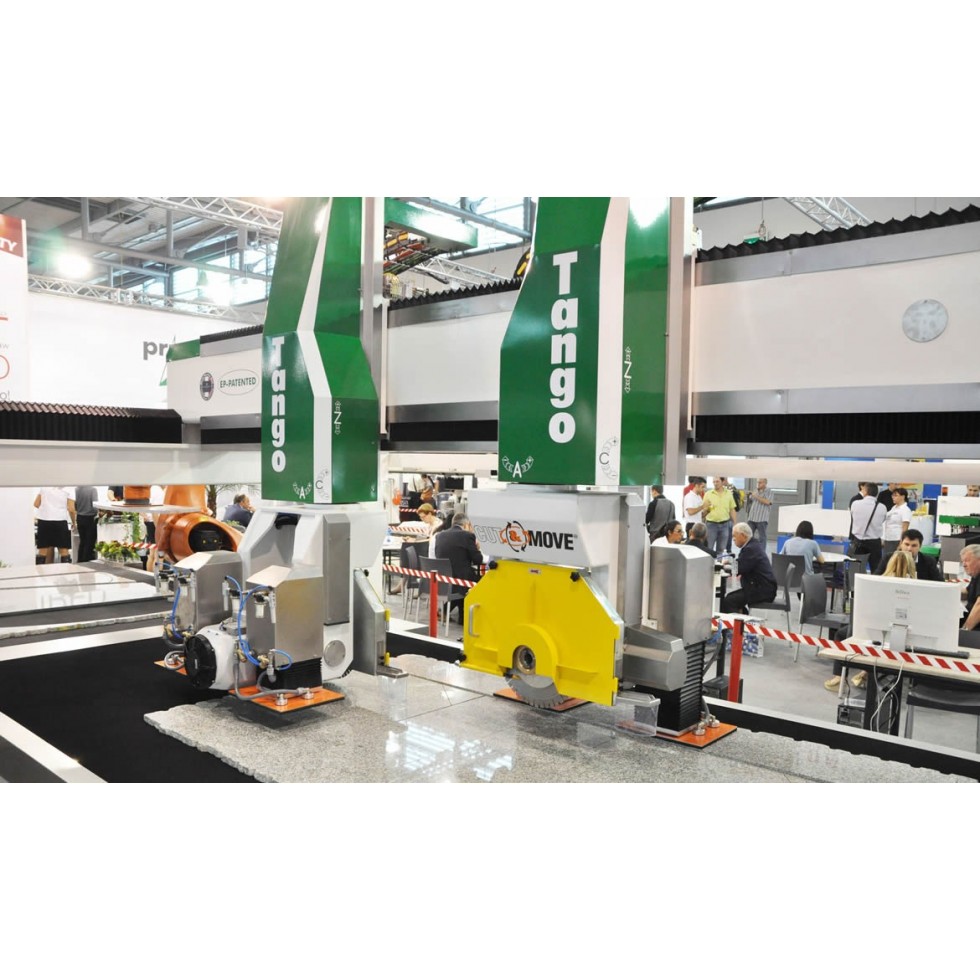

SAW - TANGO
Price: Login to view

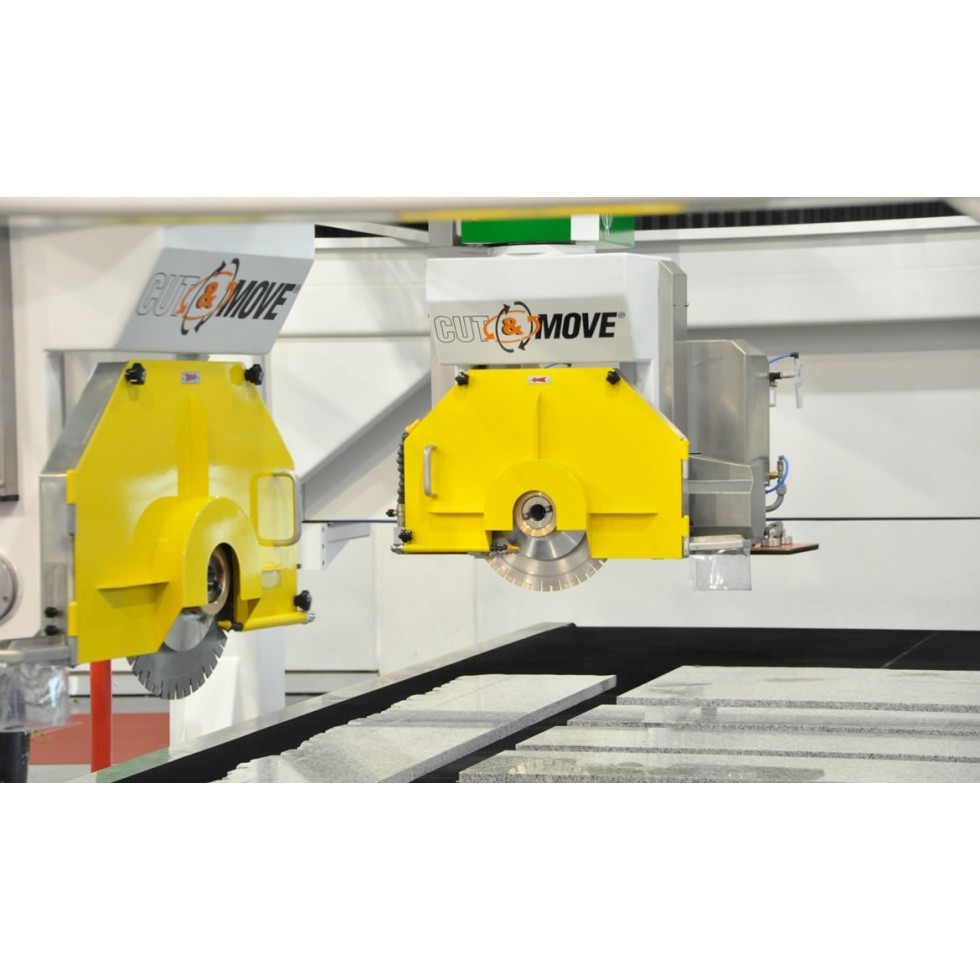

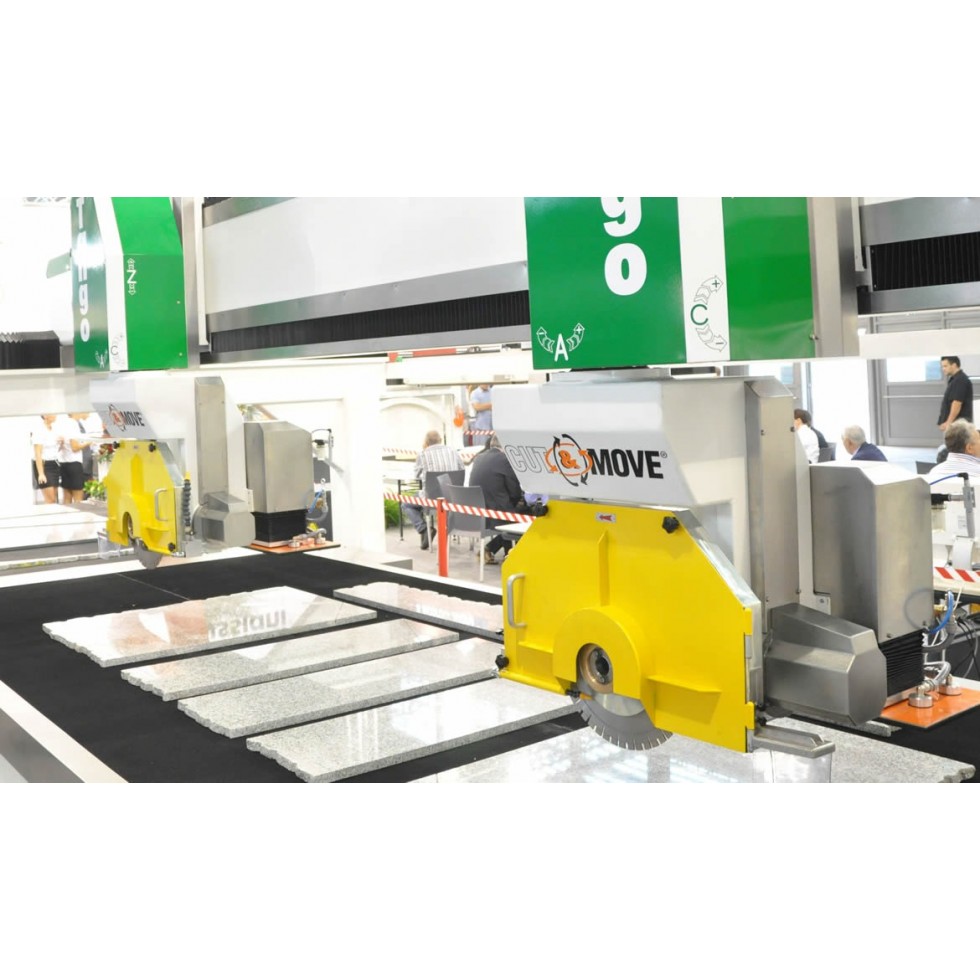

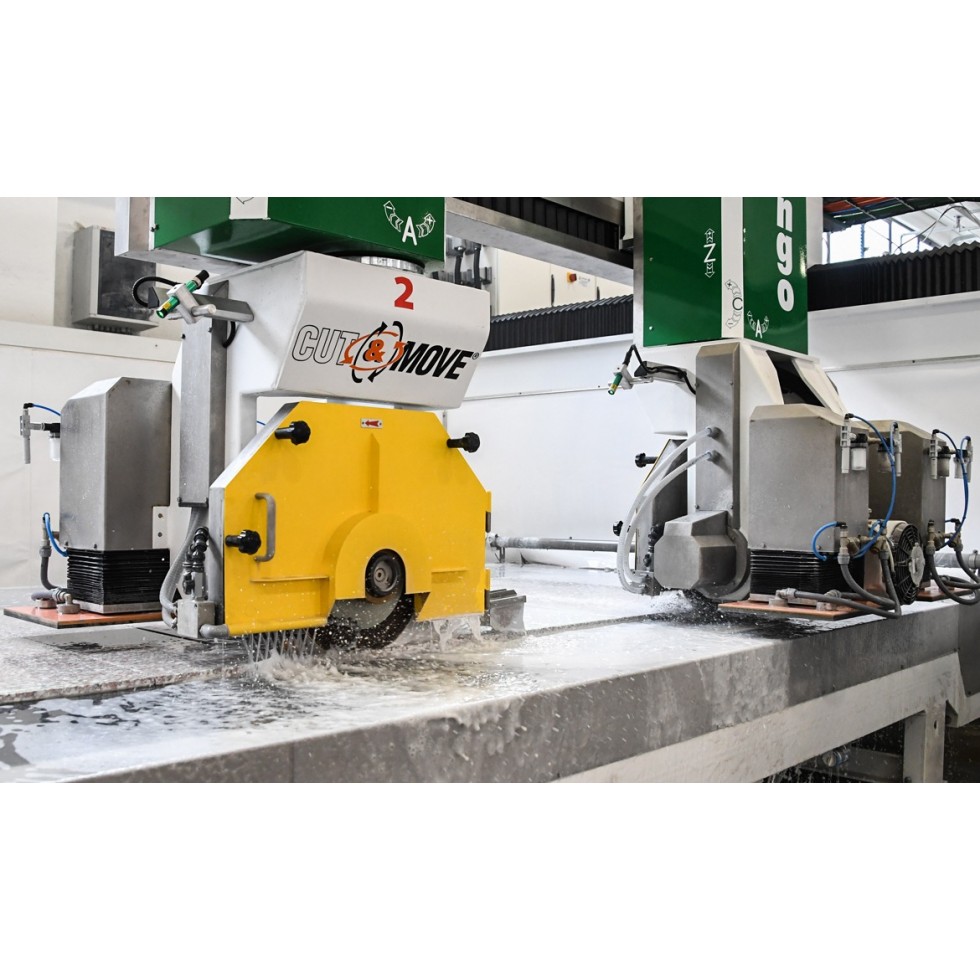

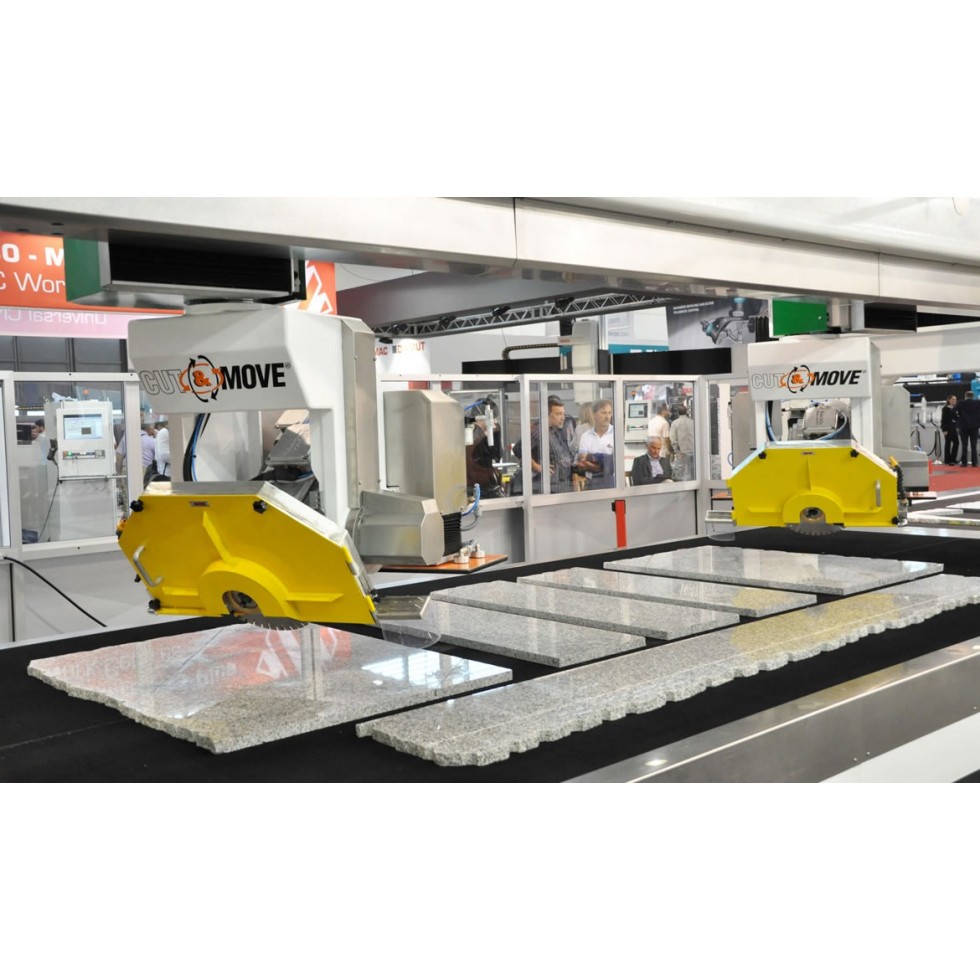

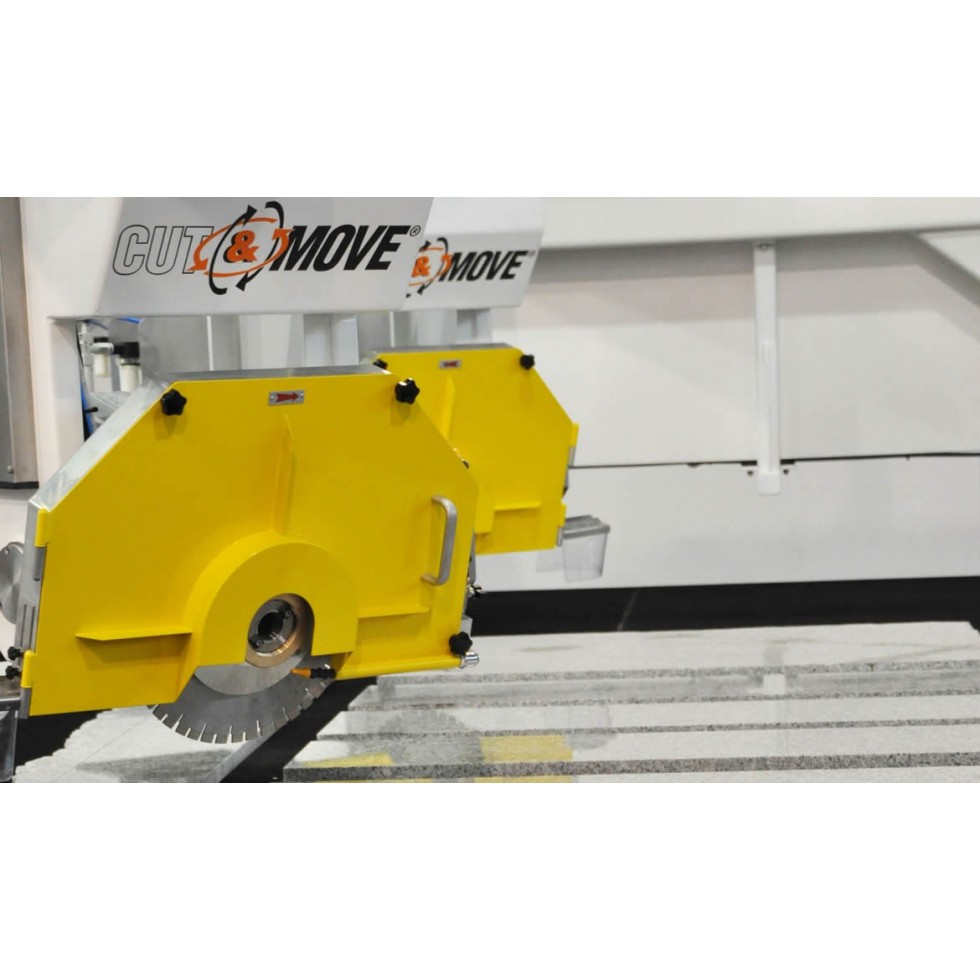

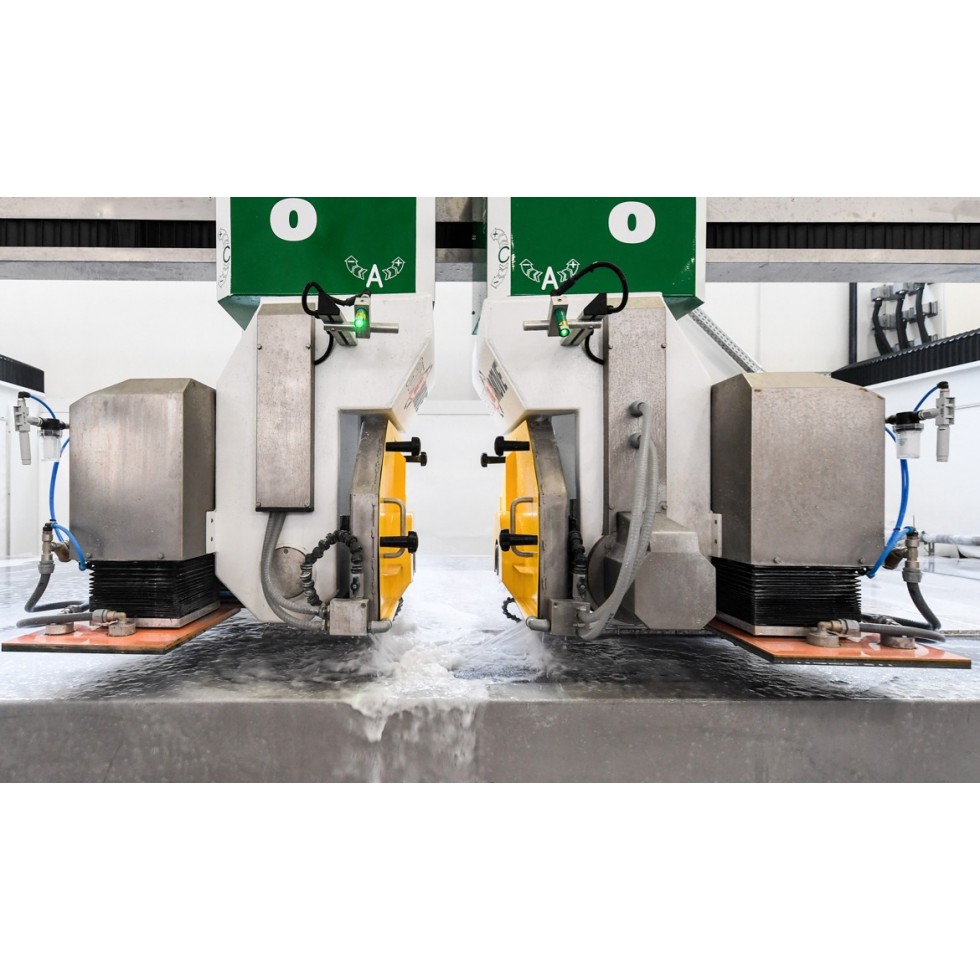

Prussiani Engineering bridge saws are designed and built for the processing of marble, granite, artificial quartz, ceramic and natural stones.

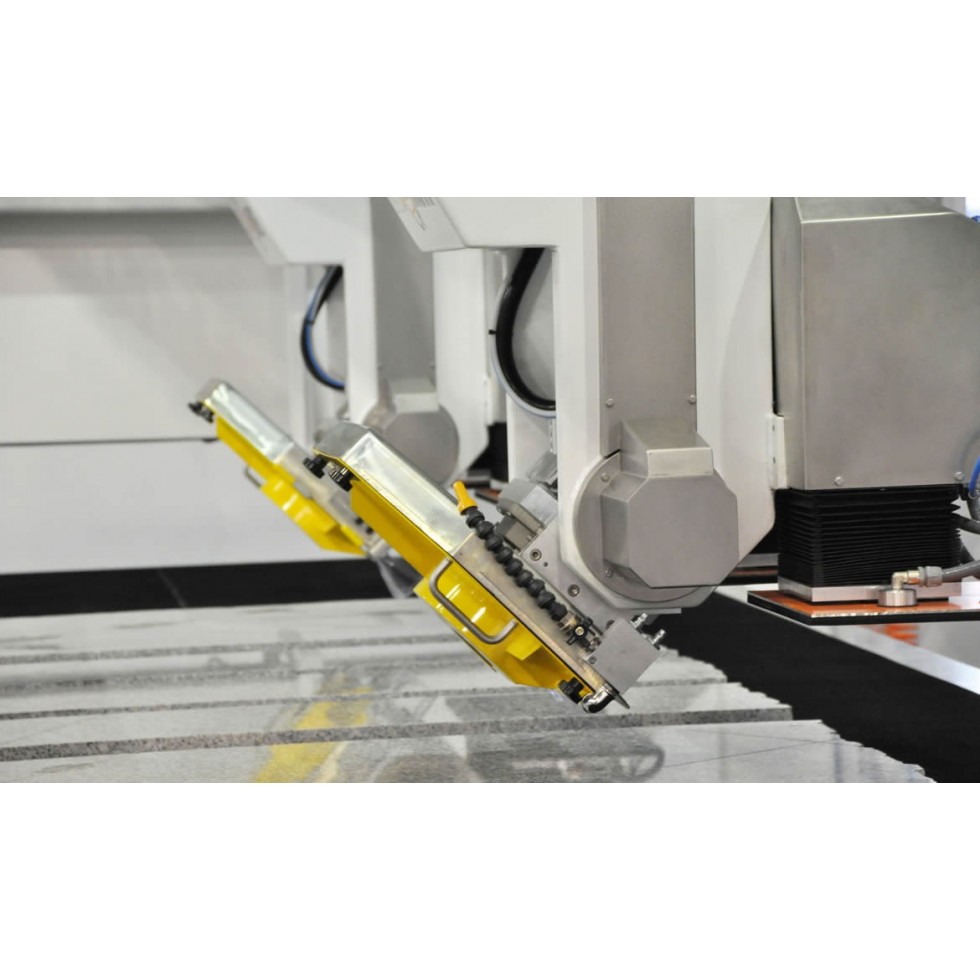

Powered by a numerical control interfaced with CAD/CAM systems, 5 interpolated axis bridge saws (STAR, CHAMPION and TANGO) are ideal for complex works like linear, curved and inclined cutting, drilling, profiling, engravings and bas-reliefs.
Whether for the production of unique pieces or for serial production STAR, CHAMPION and TANGO bridge saws are mainly used for slab cutting.

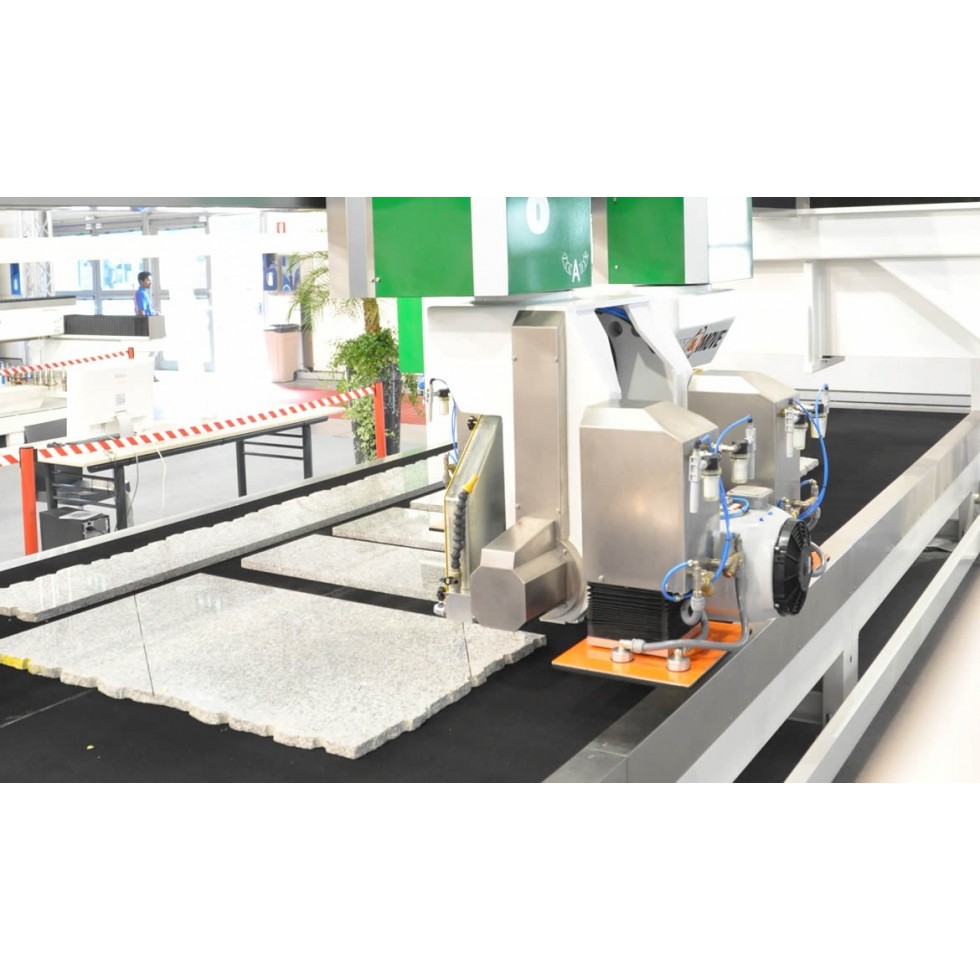

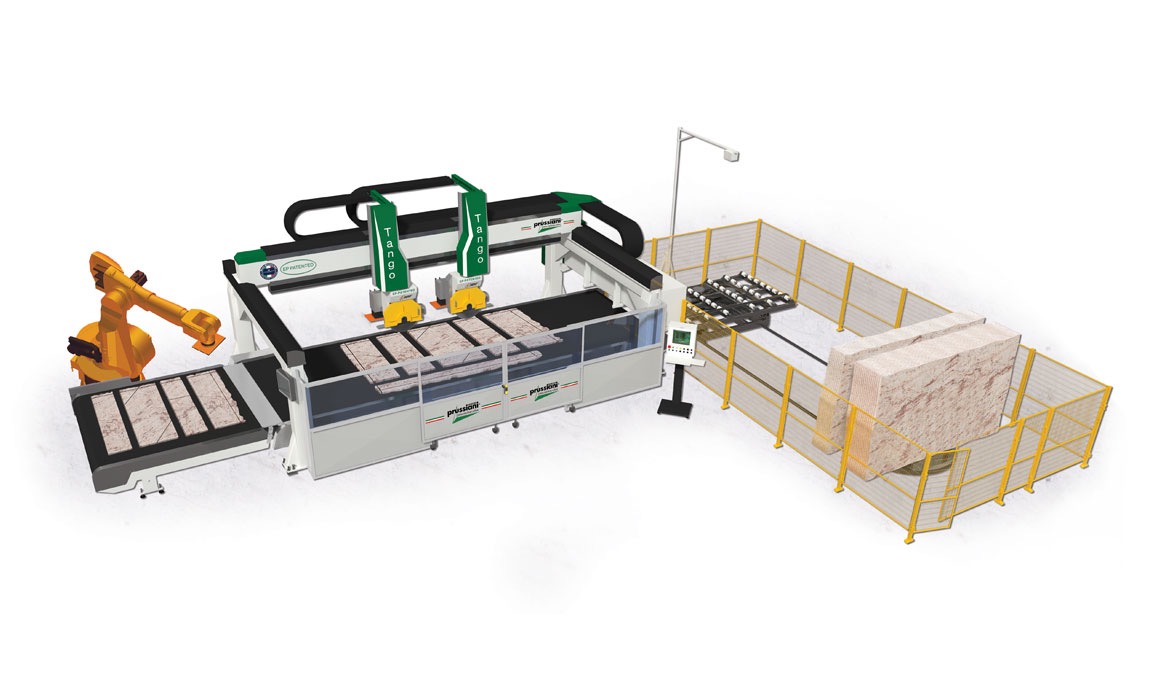

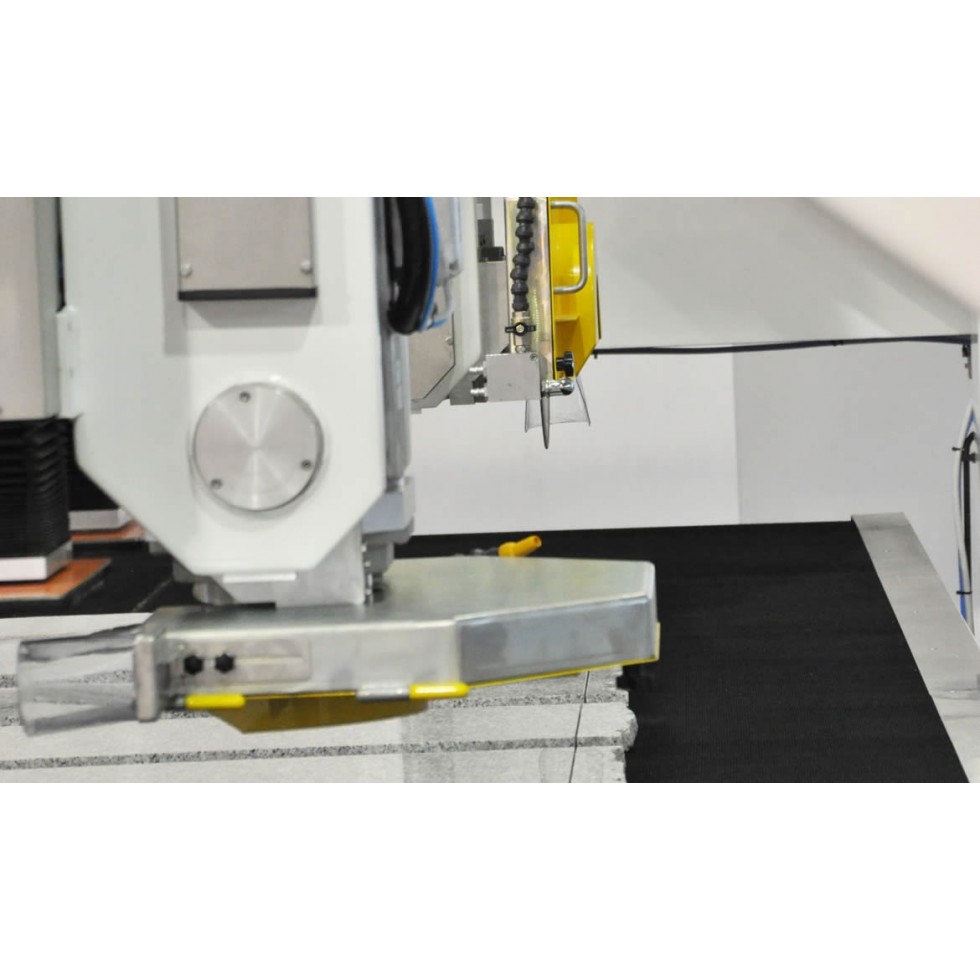

Also available in the version with conveyor belt and automatic slabs loader.
TECHNICAL DATA
| X axis stroke | mm (in) | 4.550 (179 ⅛) |
| Y axis stroke – GANTRY | mm (in) | 2.500 (98 ½) |
| Z axis stroke | mm (in) | 400 (15 ¾) |
| A axis rotation | degrees | -185°+185° (370°) |
| C axis inclination | degrees | 0°÷ 90° |
| X axis rapid speed | m/min (fpm) | 65 (213,3) |
| Y axis rapid speed | m/min (fpm) | 65 (213,3) |
| Z axis rapid speed | m/min (fpm) | 11,4 (37,4) |
| Main disk-holder electrospindle power | HP S6 (kW) | 36 (26,4) |
| Main disk-holder electrospindle torque | Nm | 170 |
| Disk-holder electrospindle rotation speed | rpm | 0 ÷ 8.000 |
| Electrospindle tool holder | – | ISO 40 |
| Max disk diameter | mm (in) | 725 (28 ½) |
| Axes motors for axis X-Y-Z-A-C with absolute encoder | – | BRUSHLESS |
MACHINE SIZES
| Max total absorbed power | kW | 65 |
| Approximate total weight | kg (lb) | 15.000 (33.070) |
| Length | mm (in) | 17.000 (669 ¼) |
| Width | mm (in) | 5.150 (202 ¾) |
| Height | mm (in) | 3.700 (145 ⅝) |

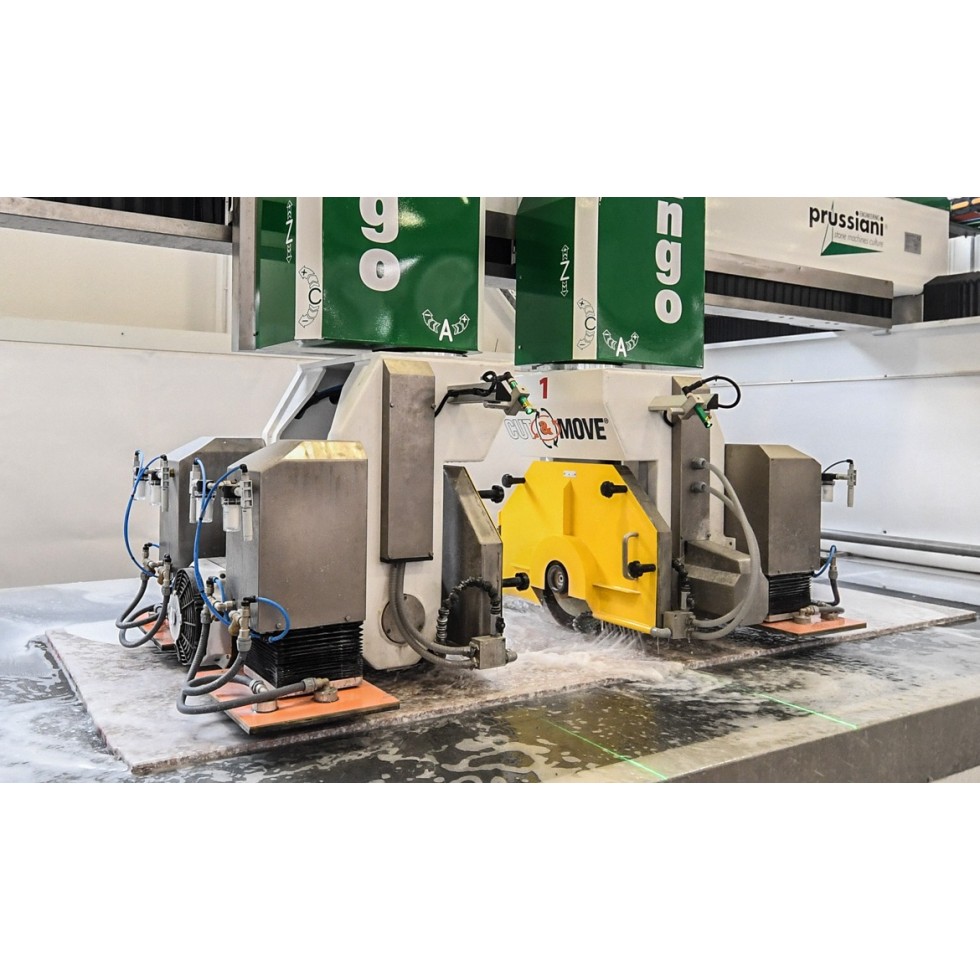

| Capacity suction cups | kg (lb) | 800 (1.763) |
| Minimum width for lifting | mm (in) | 50 (2) |
- automatic centralized greased lubrification. In case of anomalies the machines stops;
- watertight IP 55 electric cabinet with safety thermostat;
- sound power level: 80 ÷ 90 dB(A).
