NEW 5 axes monobloc bridge saw
Formula ELITE is the new 5-axis interpolated cutting center specifically designed for processing natural and engineered stone, ceramic and ultra-compact materials fully meeting the very parameters – speed, accuracy, working strokes and software interface - required for all tasks connected to efficient slab fabrication encompassing trimming, de-tensioning cuts, mitering, multidirectional and curvilinear jobs, as well as inner cut-outs.
Advanced materials such as engineered stone, ceramic and other stone/granite/quartz derivatives are pushing forward the technological challenge making traditional bridge saws increasingly obsolete. Formula LAB comes with state-of-the-art technology to empower modern stone fabricators helping them to cope with the new materials characteristics delivering a specific machine-software package.
The monobloc structure ensures max rigidity, fast acceleration, cutting accuracy and easy installation. CAD design supported by finite elements analysis deliver superior mechanical response even in most demanding conditions allowing one tenth of a millimeter finish precision and constant quality.
All guides and sliding parts are suitably protected with an ABS guard (to guarantee lightweight, rustproof, soundproof, ergonomic and aesthetically pleasing result).
Flexibility is achieved by the PC-based Numeric Control, complete and versatile user-friendly software as well as the main motor with tool attachment enabling combined processing with sawblade, core drills and router bits.

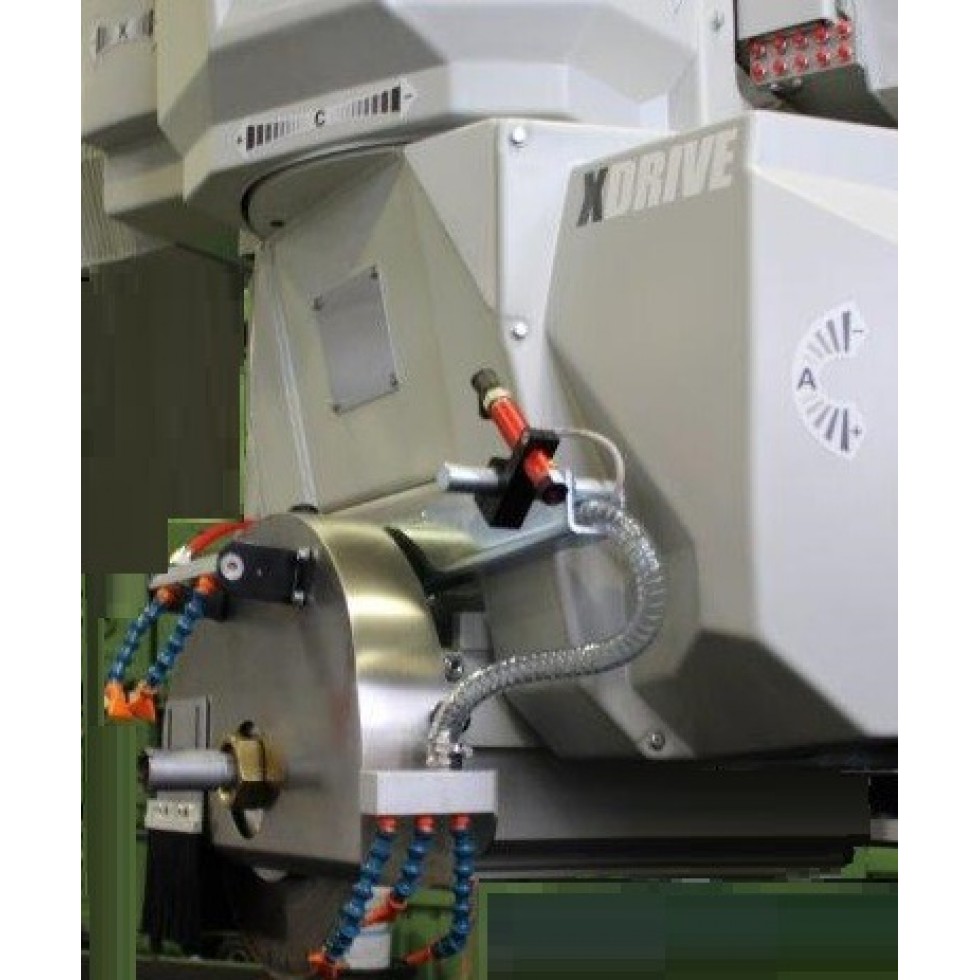

X DRIVE is the DENVER technology for the 5 axis heads. It makes use of high-rigidity motor support fork and precision gear boxes with zero backlash. This technology is controlled by an extremely advanced software called TOOL CENTER POINT which simply and continuously manages tool movements ensuring extreme precision and fast positioning providing excellent finishes with less passes. Absolute tool control provides simple and intuitive process programming with improved uptime and cost benefits.
The powerfull Kw11/HP15 (S6) spindle with adjustable speed up to 4500 RPM featuring gas attachment provides scope for a wide away of tasks using core drills and router bits.New rubber table cover, the machine comes complete with manipulation vacuum system.
