CUT & JET 4

CUT & JET 4 CUT & JET 4 CUT & JET 4 CUT & JET 4 CUT & JET 4 CUT & JET 4
Location: Area 187
Country: Italy
Mark : 4
Category: MACHINERY
Quantity : 1 Unit
Price: Only Members

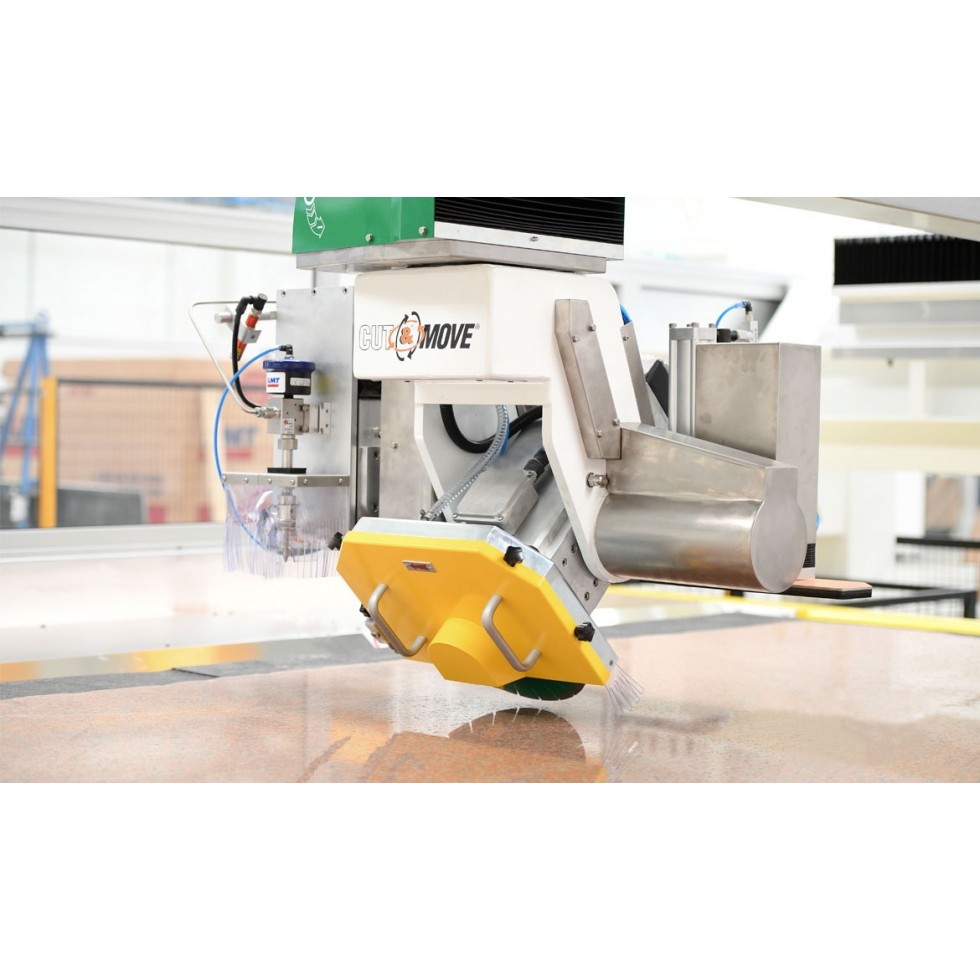

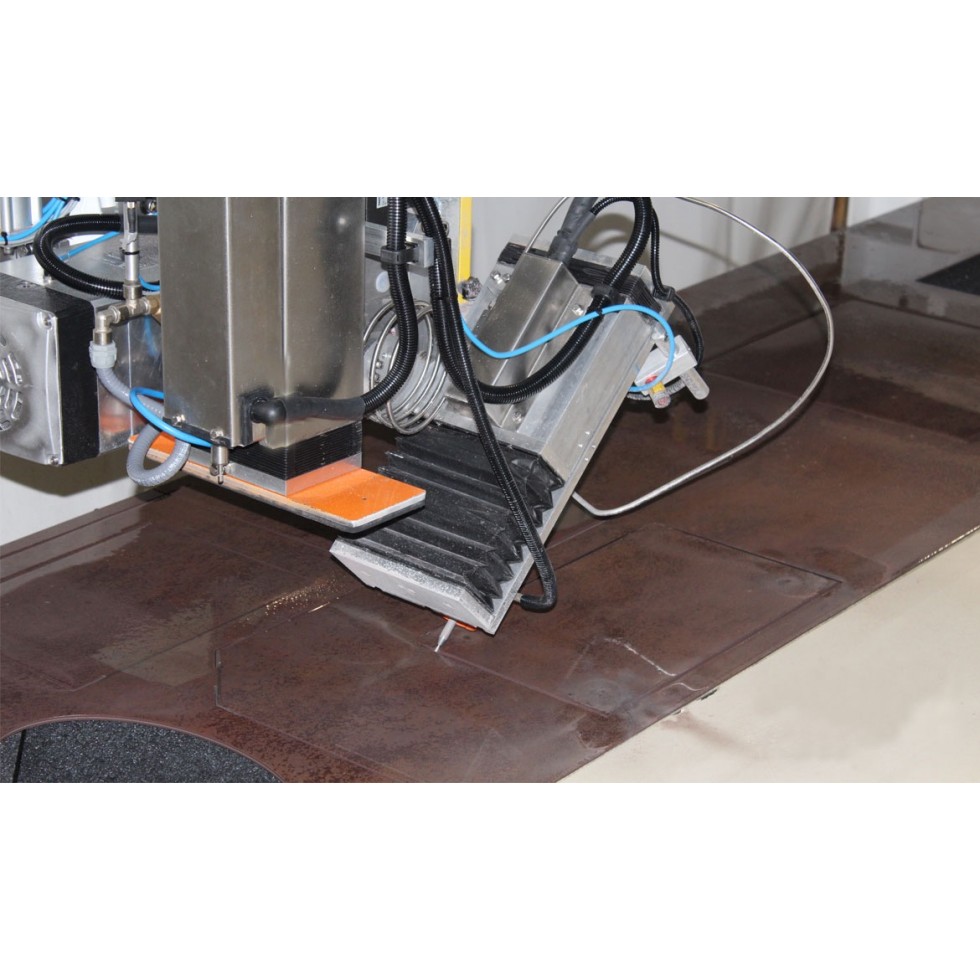

Combined CUT&JET machines, equipped with electro-spindle for diamond blades and high pressure waterjet and abrasive, are designed and built to merge the cutting speed of the blade, the versatility of the waterjet and the efficiency of the CUT & MOVE.

Powered by a numerical control interfaced with CAD/CAM systems, they are divided in:

  • Combined machines CUT&JET 4 axis;
  • Combined machines CUT&JET 5 axis;

Whether for the production of unique pieces or for serial production combined CUT&JET machines allow endless shapes of cuttings and cut-outs.



TECHNICAL DATA

X axis stroke mm (in) 3.800 (149 ⅝)
Y axis stroke – GANTRY mm (in) 2.500 (98 ½)
Z axis stroke mm (in) 350 (13 ¾)
A axis rotation degrees -185° + 185° (370°)
C2 axis tilting degrees



degrees

-5°÷60°

X axis rapid speed m/min (fpm) 45 (147,6)
Y axis rapid speed m/min (fpm) 45 (147,6)
Z axis rapid speed m/min (fpm) 10 (32,8)
Main disk-holder electrospindle power HP (kW) S6 18 (13,2)
Main disk-holder electrospindle torque Nm 72
Main disk-holder electrospindle rotation speed rpm 0 ÷ 6.000
Max disk diameter mm (in) 425 (16 ¾)
Electrospindle tool holder see model
Axes motors for axis X-Y-Z-A-C2 with absolute encoder BRUSHLESS
Capacity of abrasive container kg  (lb) 425 (937)
KMT cutting head  – Active Idee II
Max total absorbed power – Saw Machine kW 18
Max total absorbed power – Abrasive container kW 0,5
Max total absorbed power – Pump 40HP kW 29



MACHINE SIZES

Approximate total weight of the machine kg (lb) 6.000 (13.230)
Approximate total weight of the pump kg (lb) 1.200 (2.645)
Length mm (in) 6.750 (265 ¾)
Width mm (in) 4.300 (169 ¼)
Height (without hp pipe) mm (in) 3.220  (126 ¾)
Height (with hp pipe) mm (in) 4.500 ( 177 ⅛)
Maximum capacity suction cups kg (lb) 420 (926 lb)
Minimum width for lifting mm (in) 120 (4 ¾)



  • automatic centralized greased lubrication. In case of anomalies the machine stops;
  • watertight IP 55 electric cabinet with safety thermostat;
  • sound power level: 80 ÷ 90 dB(A).
