SAW - CHAMPION 65

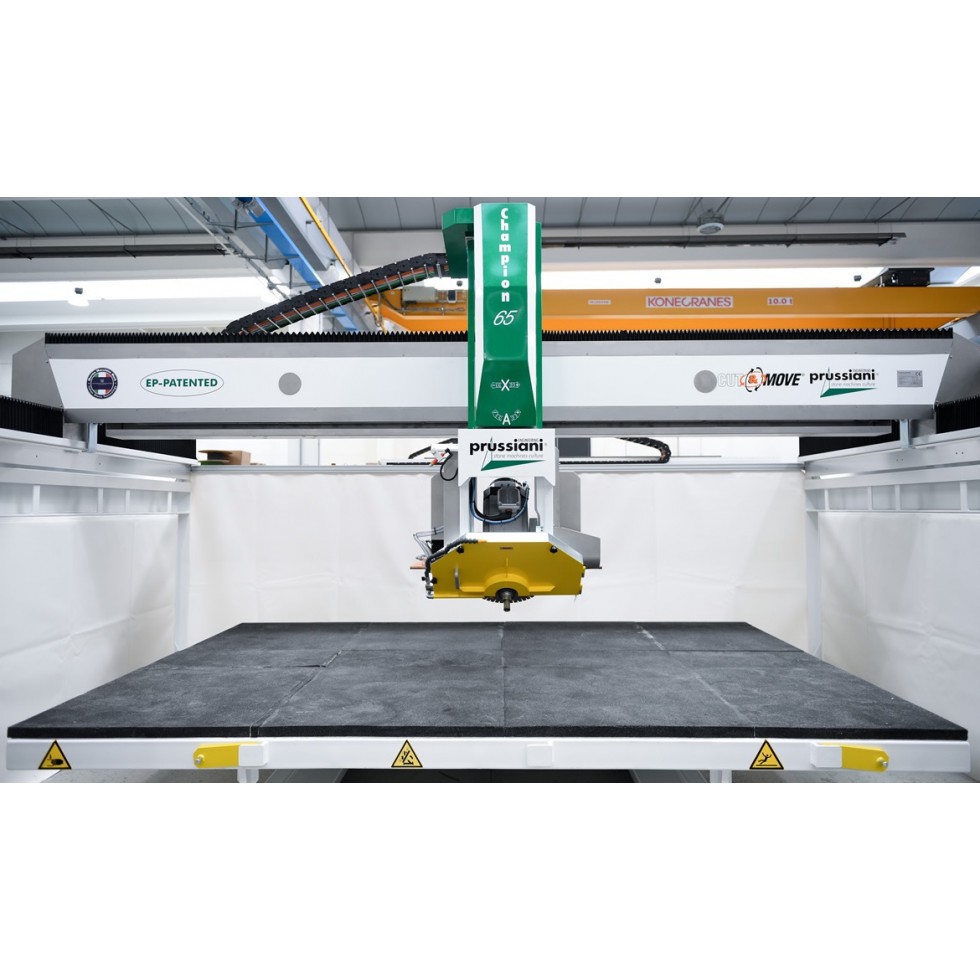

CHAMPION 65 BRIDGE SAW is designed and built for the processing of marble, granite, artificial quartz, ceramic and natural stones.
Powered by a numerical control interfaced with CAD/CAM systems, 5 interpolated axis bridge saw CHAMPION 65 is ideal for complex works like linear, curved and inclined cutting, drilling, profiling, engravings and bas-reliefs.
Whether for the production of unique pieces or for serial production CHAMPION 65 bridge saw is mainly used for slab cutting.
Also available in the version with side loading and conveyor belt.
ADVANTAGES:
- Automatic Cutting and displacement of the pieces
- Machine stability and perfect cutting quality
- Machine easy to use, intuitive CAD/CAM software
- Greater grip and non-deformability of work Tables
- Easy and lowered maintenance
- No risk of oil stains on the marble slabs
- Attention to people safety
TECHNICAL DATA
| X axis stroke | mm (in) | 3.800 (149 ⅝) |
| Y axis stroke – GANTRY | mm (in) | 2.500 (98 ½) |
| Z axis stroke | mm (in) | 450 (17 ⅔) |
| A axis rotation | degrees | -185° ÷ 185° (370°) |
| C axis inclination | degrees | 0°÷ 90° |
| X axis rapid speed | m/min (fpm) | 75 (246) |
| Y axis rapid speed | m/min (fpm) | 75 (246) |
| Z axis rapid speed | m/min (fpm) | 8 (26,2) |
| Main disk-holder electrospindle power | HP S6 (kW) | 22,5 (16,5) |
| Main disk-holder electrospindle torque | Nm | 100 |
| Disk-holder electrospindle rotation speed | rpm | 0 ÷ 10.000 |
| Electrospindle tool holder | – | ISO 40 |
| Max disk diameter | mm (in) | 750 (29 ½) |
| Axes motors for axis X-Y-Z-A-C with absolute encoder | – | BRUSHLESS |
MACHINE SIZES
| Max total absorbed power | kW | 24 |
| Approximate total weight | kg (lb) | 5.200 (11.500) |
| Length | mm (in) | 6.900 (271 ⅔) |
| Width | mm (in) | 4.470 (176) |
| Height | mm (in) | 3.270 (128 ⅔) |
| Maximum capacity suction cups | kg (lb) | 800 (1.763) |
| Minimum width for lifting | mm (in) | 50 (2) |
- automatic centralized greased lubrification. In case of anomalies the machines stops;
- watertight IP 55 electric cabinet with safety thermostat;
- sound power level: 80 ÷ 90 dB(A).
